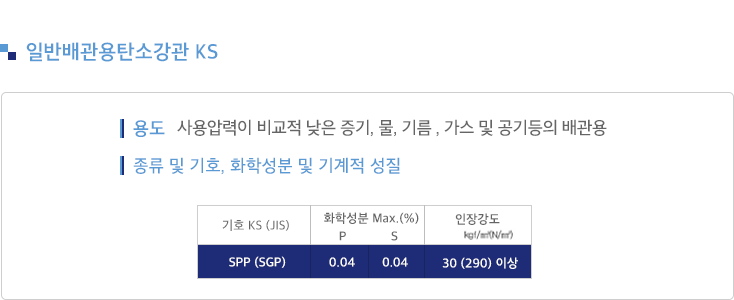

KS D 3507(JIS G 3452)
호칭		외경	외경의 허용차		두께(mm)		허용두께차	소켓을 포함 하지않은 중량
A	B	(mm)	테이퍼 나사관	기타관	KS	JIS		(kg/m)
10	3/8	17.3	±0.5mm		2.35	2.30	+규정하지 않음	0.866
15	1/2	21.7	±0.5mm		2.65	2.80		1.250
20	3/4	27.2	±0.5mm		2.65	2.80		1.600
25	1	34.0	±0.5mm		3.25	3.20		2.450
32	1 1/4	42.7	±0.5mm		3.25	3.50		3.160
40	1 1/2	48.6	±0.5mm		3.25	3.50		3.630
50	2	60.5	±0.5mm	±1%	3.65	3.80		5.120
65	2 1/2	76.3	±0.7mm	±1%	3.65	4.20		6.340
80	3	89.1	±0.8mm	±1%	4.05	4.20		8.490
90	3 1/2	101.6	±0.8mm	±1%	4.05	4.20		9.740
100	4	114.3	±0.8mm	±1%	4.50	4.50		12.200
125	5	139.8	±0.8mm	±1%	4.85	4.50	-12.5%	16.100
150	6	165.2	±0.8mm	±1%	4.85	5.00		19.200
200	8	216.5	±1.0mm	±1%	5.85	5.80		30.400
250	10	267.4	±1.3mm	±1%	6.40	6.60		41.200
300	12	318.5	±1.5mm	±1%	7.00	6.90		53.800
350	14	355.6		±1%	7.60	7.90		65.200
400	16	406.4		±1%	7.90	7.90		77.600
450	18	457.2		±1%	7.90	7.90		87.500
500	20	508.0		±1%	7.90	7.90		97.400
550	22	558.8		±1%	7.90			107.000
600	24	609.6		±1%	7.90			117.000

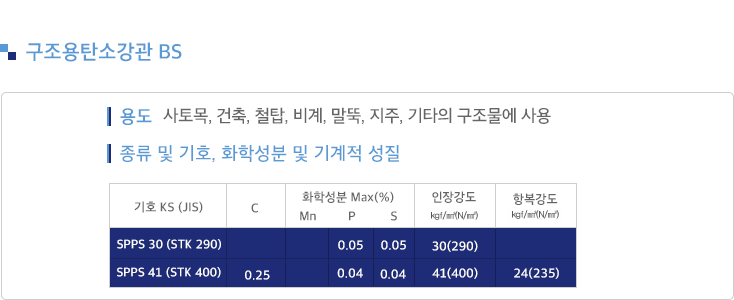

바깥지름	두께	단중	참             고
(㎜)	(㎜)	(kg/m)	단면적(㎠)	단면2차모멘트(㎠)	단면계수(㎠)	단면2차반지름(㎝)
21.7	2.0	0.972	1.238	0.607	0.560	0.700
27.2	2.0	1.24	1.583	1.26	0.930	0.890
	2.3	1.41	1.799	1.41	1.03	0.880
34.0	2.3	1.80	2.291	2.89	1.70	1.12
42.7	2.3	2.29	2.191	5.97	2.80	1.43
	2.8	2.76	3.510	7.02	3.29	1.41
48.6	2.3	2.63	3.345	8.99	3.70	1.64
	2.8	3.16	4.029	10.6	4.36	1.62
	3.2	3.58	4.564	11.8	4.86	1.61
60.5	2.3	3.30	4.205	17.8	5.90	2.06
	3.2	4.52	5.760	23.7	7.84	2.03
	4.0	5.57	7.100	28.5	9.41	2.00
76.3	2.8	5.08	6.465	43.7	11.5	2.60
	3.2	5.77	7.349	49.2	12.9	2.59
	4.0	7.13	9.085	59.5	15.6	2.56
89.1	2.8	5.96	7.591	70.7	15.9	3.05
	3.2	6.78	8.636	79.8	17.9	3.04
	4.0	8.39	10.69	97.0	21.8	3.01
101.6	3.2	7.76	9.892	120	23.6	3.48
	4.0	9.63	12.26	146	28.8	3.45
	5.0	11.9	15.17	177	34.9	3.42
114.3	3.2	8.77	11.17	172	30.2	3.93
	3.6	9.83	12.52	192	33.6	3.92
	4.5	12.2	15.52	234	41.0	3.89
	5.6	15.0	19.12	283	49.6	3.85
139.8	3.6	12.1	15.40	357	51.1	4.82
	4.0	13.4	17.07	394	56.3	4.80
	4.5	15.0	19.13	438	62.7	4.79
	6.0	19.8	25.22	566	80.9	4.74
165.2	4.5	17.8	22.72	734	88.9	5.68
	5.0	19.8	25.16	808	97.8	5.67
	6.0	23.6	30.01	952	115	5.63
	7.0	27.3	34.79	109×10	132	5.60
190.7	4.5	20.7	26.32	114×10	120	6.59
	5.0	22.9	29.17	126×10	132	6.57
	6.0	27.3	34.82	149×10	156	6.53
	7.0	31.7	40.40	171×10	179	6.50
216.3	4.5	23.5	29.94	168×10	155	7.49
	6.0	31.1	39.61	219×10	203	7.44
	7.0	36.1	46.03	252×10	233	7.40
	8.0	41.1	52.35	284×10	263	7.37
267.4	6.0	38.7	49.27	421×10	315	9.24
	7.0	45.0	57.27	486×10	363	9.21
	8.0	51.2	65.19	549×10	411	9.18
	9.0	57.4	73.06	611×10	457	9.14
318.5	6.0	46.2	58.91	719×10	452	11.1
	7.0	53.8	68.50	831×10	552	11.0
	8.0	61.3	78.04	941×10	591	11.0
	9.0	68.7	87.51	105×10²	659	10.9
